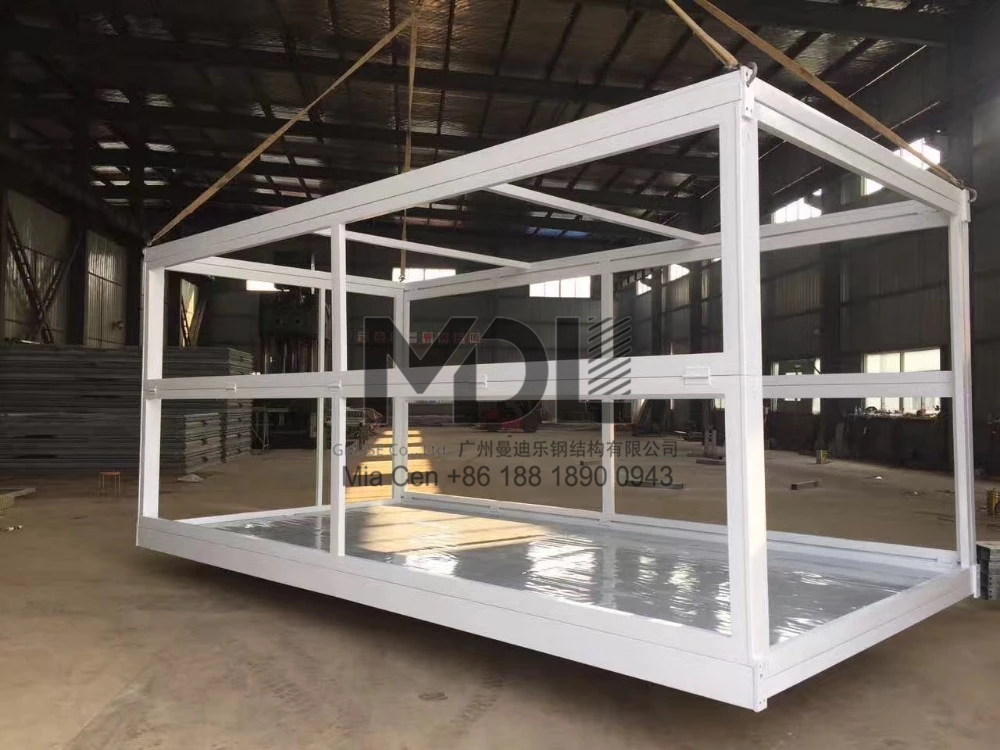

Mobile FOLDING CONTAINER house for refuge chamber
* Each house have 14.5 SQMe construction area. You can make 1 bedroom or open space design.
* 4 people, 10 mins finished set up
* Winter is warm, summer is cold. We achieve U - Value below 0.2. We have EN 1090-1 Standard. CE high quality assurance.
Q235 SHS, Sandwich panel, Glass door, PVC window, Fiber cement board,
Eco-Friendly, Water Soluble, Other
Refuge chamber Engineering Report
1.1 General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
2.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
Mobile clinic for Doctor Without Borders. We have many project in Africa, which the refuge is suffering the war, they are in danger. So our mobile clinic is suitable for movable and easy to set up. We can provide a safety shutter for doctor perform a surgery at anytime, save more life.
Education classroom and student dormitory.
This is our EU project, we provide a fancy and lovely tiny area for the human-being future: Our student a good place to study and live.
Product Name Production Line Capacity Actual Units Produced(Previous Year)
Light Steel Villa 5000 Square Meters/Month 12000 Square Meters
Prefabricated House 47000 Square Meters/Month 500000 Square Meters
Container House 6000 Sets/Month 10000 Sets
Portable toilet and Guard House 2000 Sets/Month 15000 Sets
Steel Structure Workshop and Warehouse 30000 Square Meters/Month 100000 Square Meters
open top container
It seems that this is really easy !

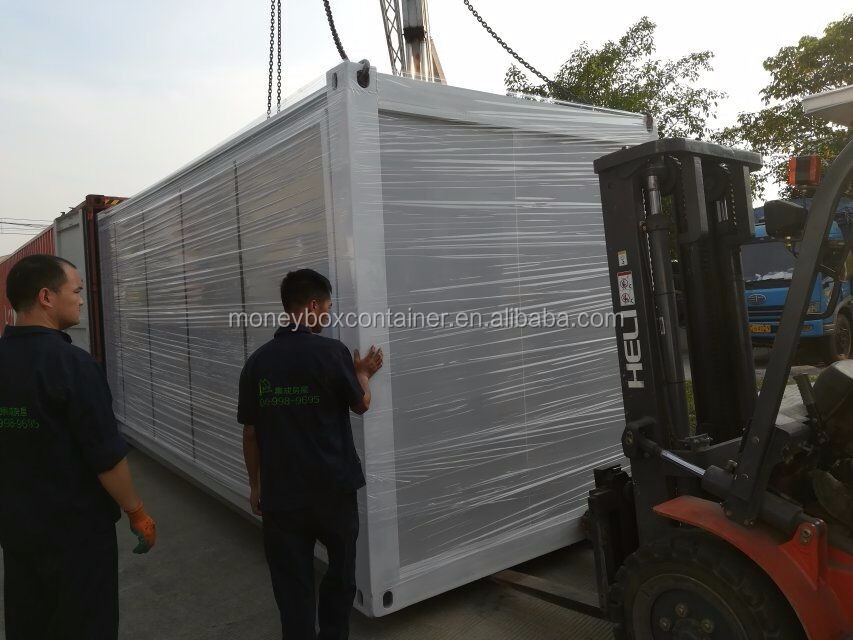

You can use a truck unload it
40ft HQ sea container
1 pcs 40HQ can load 2 units. just in time.
Product Categories : FOLDING CONTAINER
