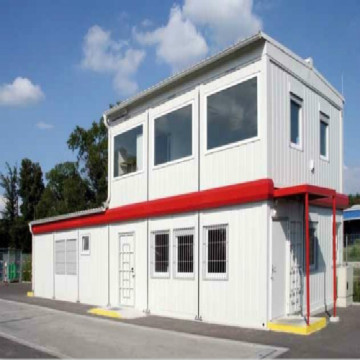

Insulated Prefabricated Building with Ce Certification

Basic Info

Model No.:  KXD-004

Product Description



Model NO.: KXD-004


Customized: Customized


Warranty: 30 Year Limited Warranty


Member of Engineering Team: 20


Life Cycle: 50 Years


Customer Service: Aftersale Service


Engineering Tools: Autocad


Transport Package: Seaworthy Package for EPS Sandwich Panel


Origin: Qingdao, China




Certification: BV, ISO, SGS


Size: According to Customers′ Requirement


Color Reference: Ral


Quality Control: Daily


Construction Period: 60 Days


Project Management: Turnkey Solution


Trademark: KXD


Specification: ISO, SGS, BV


HS Code: 7210900000


Insulated Prefabricated Building with CE Certification



Product Brief



Prefabricated building,which is also called Modular buildings and modular houses/homes are sectional prefabricated buildings, or houses, that consist of multiple sections called modules. "Modular" is a method of construction differing from other methods (e.g. "stick-built" and other methods such as off-site construction). The modules are six sided boxes constructed in an exterior (sometimes, remote) facility, then delivered to their intended site of use. Using a crane, the modules are set onto the building's foundation and joined together to make a single building. The modules can be placed side-by-side, end-to-end, or stacked, allowing a wide variety of configurations and styles in the building layout.



Modular buildings, also called prefabricated buildings, differ from mobile homes, which are also called manufactured homes, in two ways. First, modular homes do not have axles or a frame, meaning that they are typically transported to their site by means of flat-bed trucks. Secondly, modular buildings must conform to all local building codes for their proposed use, while mobile homes, made in the United States, are required to conform to federal codes governed by HUD (U.S. Department of Housing and Urban Development).[1] There are some residential modular buildings that are built on a steel frame (referred to as on-frame modular) that do meet local building codes and are considered modular homes, rather than mobile homes.



1.Technical Data-Standard containerized modules for Modular buildings and modular houses/homes are sectional prefabricated buildings, or houses, that consist of multiple sections called modules. "Modular" is a method of construction differing from other methods (e.g. "stick-built" and other methods such as off-site construction). The modules are six sided boxes constructed in an exterior (sometimes, remote) facility, then delivered to their intended site of use. Using a crane, the modules are set onto the building's foundation and joined together to make a single building. The modules can be placed side-by-side, end-to-end, or stacked, allowing a wide variety of configurations and styles in the building layout.

Modular buildings, also called prefabricated buildings, differ from mobile homes, which are also called manufactured homes, in two ways. First, modular homes do not have axles or a frame, meaning that they are typically transported to their site by means of flat-bed trucks. Secondly, modular buildings must conform to all local building codes for their proposed use, while mobile homes, made in the United States, are required to conform to federal codes governed by HUD (U.S. Department of Housing and Urban Development).[1] There are some residential modular buildings that are built on a steel frame (referred to as on-frame modular) that do meet local building codes and are considered modular homes, rather than mobile homes.

1.Technical Data-Standard containerized modules for Modular buildings and modular houses/homes are sectional prefabricated buildings, or houses, that consist of multiple sections called modules. "Modular" is a method of construction differing from other methods (e.g. "stick-built" and other methods such as off-site construction). The modules are six sided boxes constructed in an exterior (sometimes, remote) facility, then delivered to their intended site of use. Using a crane, the modules are set onto the building's foundation and joined together to make a single building. The modules can be placed side-by-side, end-to-end, or stacked, allowing a wide variety of configurations and styles in the building layout.

Modular buildings, also called prefabricated buildings, differ from mobile homes, which are also called manufactured homes, in two ways. First, modular homes do not have axles or a frame, meaning that they are typically transported to their site by means of flat-bed trucks. Secondly, modular buildings must conform to all local building codes for their proposed use, while mobile homes, made in the United States, are required to conform to federal codes governed by HUD (U.S. Department of Housing and Urban Development).[1] There are some residential modular buildings that are built on a steel frame (referred to as on-frame modular) that do meet local building codes and are considered modular homes, rather than mobile homes.

1.Technical Data-Standard containerized modules for modular house solution



Technical characteristics of containers type modules elements

(1)ISO standard dimensions of 20 feet STANDARD containers-optionally 10 up to 30 feet

(2)length=6.058 mm (optionally 3.048 - 9.100 mm)

width=2.438 mm (optionally 3.000 mm)

(3)exterior height=2.591 mm (optionally 2.791 mm or 3100 mm)

(4)inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)



container construction difference

ZINCED metal profyles 3 mm connected with scres



container painting

(1)option: on customer wish in RAL color

(2)option: painted on customer wish in RAL color



container floor opening for forklift

(1)without forklift pockets

(2)option: with forklift pockets for containers up to 7.335 mm

(3)holes distance 1.506mm



container roof construction



container exterior wall and side panels

(1)50 mm poliurethane panel, externally micro-corrugated RAL 9002

internally smooth RAL 9010 (white)

(2)option: 60 mm mineral wool, both side plastificated in RAL 9002

(3)option: 60 mm mineral wool, both side plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)

(4)option: 80 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(5)option: 100 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(6)option: 100 mm mineral wool, both side plasticated steel plate RAL 9010 (white)

(7)option: 120 mm mineral wool, both side plasticated steel plate RAL 9010 (white)



container exterior and inner walls

PVC with polyurethane filling 40 mm, clear opening 79/202 cm



container windows and doors

(1)option: windows without shutters

(2)option: windows with shutters



container isolation, coefficient of thermal resistance

floor - U = 0,37 W / m2k

roof - U = 0,39 W /m2k

wall panels - U = 0,41 W /m2k

windows - U = 2,40 W / m2k



Flat Pack Containerized Modular House Solution





Individual KXD container modules

They are assembled in KXD factory production from KXD manufactured elements. They come to the market as finished product as residential or office space equipped with or without equipment. Individual container modules are used as a single objects as bungalows, dormitories, offices, warehouses, shops, workshops and a built MODULE for the construction of various shapes and purposes.



dimensions and weights



container location preparation



container handling and lifting



option: Forklift for lifting containers up to 7.3 m in lenght if container has forklift holes



container electric installations



Illustration of singel module for multi-storey modular house



Insight into the modular house





Wide application for Containerized Modular House Solution:

Modular Houses may be used for long-term, temporary or permanent facilities, such as construction camps, schools and classrooms, civilian and military housing, and industrial facilities.[2] Modular buildings are used in remote and rural areas where conventional construction may not be reasonable or possible.Other uses have included churches, health care facilities, sales and retail offices, fast food restaurants and cruise ship construction. They can also be used in areas that have weather concerns, such as hurricanes.



Construction process for modular house

Modular components are typically constructed indoors on assembly lines. Modules' construction may take as little as ten days but more often one to three months. Completed modules are transported to the building site and assembled by a crane.[4] Placement of the modules may take from several hours to several days.



Manufacturing considerations

The entire process of modular construction places significance on the design stage. This is where practices such as Design for Manufacture and Assembly (DfMA) are used to ensure that assembly tolerances are controlled throughout manufacture and assembly on site. It is vital that there is enough allowance in the design to allow the assembly to take up any "slack" or misalignment of components. The use of advanced CAD systems, 3D printing and manufacturing control systems are important for modular construction to be successful.[5] This is quite unlike on-site construction where the tradesman can often make the part to suit any particular installation.



Advantages of modular house



Modular buildings are argued to have advantages over conventional buildings, for a variety of reasons.

Speed of construction/faster return on investment. Modular construction allows for the building and the site work to be completed simultaneously. According to some materials, this can reduce the overall completion schedule by as much as 50%.

Indoor construction. Assembly is independent of weather, which can increase work efficiency and avoids damaged building material.

Ability to service remote locations. Particularly in countries in which potential markets may be located far from industrial centers, such as Australia, there can be much higher costs to build a site-built house in a remote area or an area experiencing a construction boom such as mining towns.[citation needed]

Low waste. With the same plans being constantly built, the manufacturer has records of exactly what quantity of materials are needed for a given job. While waste from a site-built dwelling may typically fill several large dumpsters, construction of a modular dwelling generates much less waste.

Environmentally friendly construction process. Modular construction reduces waste and site disturbance compared to site-built structures.[citation needed]

Flexibility. One can continually add to a modular building, including creating high rises.[6]

Generally speaking, our Steel Structure Warehouse/workshop are categorized as below:

Insulated Prefabricated Building with Ce Certification


(1) Simple Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet
Door Simple steel rolling shutter (within 10m2)
Window Very few
Usage Warehouse, workshop
Standard and suitable market Africa, Middle-East, South America (no snow, wind load below 0.4kn/m2)




(2) Standard Steel Structure Workshop
Main structure Single span: L -shorter than 24m, H -lower than 8m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door(within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Snow loading below 0.5kn,wind loading below 0.5kn/m2





3) Coastal (high wind speed) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Coastal areas (snow loading below 0.7kn, wind load below 1.2kn/m2)





(4) Cold Region (heavy snow) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof EPS/rock wool/PU sandwich board
Wall EPS/rock wool/PU sandwich board
Door PU foamed rolling door
Window Alu. Alloy, Hollow glass
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Cold regions such as Norway, Russian, North Canada, Finland, Iceland, Greenland, Sweden, etc. (snow loads below 3kn, wind load below 1KN/M2)





(5) Steel Structure Workshop with Crane (5T, 10T, 20T)
Main structure Single span: L -shorter than 20m, H -lower than 10m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop
Standard and suitable market Snow 0.5kn, wind load below 0.5kn/m2




Name steel structure hangar
Standard GB
Main Material
Main frame Q 235 &Q345
Bracing Angel and round pipe
Purlin C or Z section steel
Connection Normal bolts and High strength bolt
Roof panel Corrugated Steel Sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Wall panel Corrugated steel sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Accessories Skylight belts, Ventilators, Down pipe, Out gutter
Windows Aluminum window/PVC sliding window
Doors Sliding door;Rolling up door;Folding tip-up door;PVC door
Surface Hot dip galvanize or Painted
Packing Main frame packed in 40FT container, maintenance packed in 40HQ container
Main market North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe


Specifications


Name

Steel Structural

Dimensions

Length

H beam:4000-15000mm

Thickness:

web plate:6-32mm

wing plate:6-40mm

Height

200-1200mm

Color

according to customers



Advantages

1. design according to customers' requirements

2. manufacture under complete quality control system---ISO9001

3. Fast construction and easy installation .

4. installation with instruction of experienced engineers

5. Hight quality and low-price .

6. Wide span , Flexible design , Long using life

7.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

Main components

Main frame

H beam

Purlin

C or Z section steel purlin

Brace

Anchor, ordinary, high strength bolt

Bolt

Sandwich panel or steel plate

Roof &wall

PVC or aluminum alloy door

Door

Sliding or rolling door

Insulation panel

EPS,XPS,Rock wool , PU sandwich

Material

Q235,Q345 China standard steel

Sheet

0.5mm or 0.6mm galvanized sheet


solution



Technical characteristics of containers type modules elements

(1)ISO standard dimensions of 20 feet STANDARD containers-optionally 10 up to 30 feet

(2)length=6.058 mm (optionally 3.048 - 9.100 mm)

width=2.438 mm (optionally 3.000 mm)

(3)exterior height=2.591 mm (optionally 2.791 mm or 3100 mm)

(4)inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)



container construction difference

ZINCED metal profyles 3 mm connected with scres



container painting

(1)option: on customer wish in RAL color

(2)option: painted on customer wish in RAL color



container floor opening for forklift

(1)without forklift pockets

(2)option: with forklift pockets for containers up to 7.335 mm

(3)holes distance 1.506mm



container roof construction



container exterior wall and side panels

(1)50 mm poliurethane panel, externally micro-corrugated RAL 9002

internally smooth RAL 9010 (white)

(2)option: 60 mm mineral wool, both side plastificated in RAL 9002

(3)option: 60 mm mineral wool, both side plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)

(4)option: 80 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(5)option: 100 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(6)option: 100 mm mineral wool, both side plasticated steel plate RAL 9010 (white)

(7)option: 120 mm mineral wool, both side plasticated steel plate RAL 9010 (white)



container exterior and inner walls

PVC with polyurethane filling 40 mm, clear opening 79/202 cm



container windows and doors

(1)option: windows without shutters

(2)option: windows with shutters



container isolation, coefficient of thermal resistance

floor - U = 0,37 W / m2k

roof - U = 0,39 W /m2k

wall panels - U = 0,41 W /m2k

windows - U = 2,40 W / m2k



Flat Pack Containerized Modular House Solution





Individual KXD container modules

They are assembled in KXD factory production from KXD manufactured elements. They come to the market as finished product as residential or office space equipped with or without equipment. Individual container modules are used as a single objects as bungalows, dormitories, offices, warehouses, shops, workshops and a built MODULE for the construction of various shapes and purposes.



dimensions and weights



container location preparation



container handling and lifting



option: Forklift for lifting containers up to 7.3 m in lenght if container has forklift holes



container electric installations



Illustration of singel module for multi-storey modular house



Insight into the modular house





Wide application for Containerized Modular House Solution:

Modular Houses may be used for long-term, temporary or permanent facilities, such as construction camps, schools and classrooms, civilian and military housing, and industrial facilities.[2] Modular buildings are used in remote and rural areas where conventional construction may not be reasonable or possible.Other uses have included churches, health care facilities, sales and retail offices, fast food restaurants and cruise ship construction. They can also be used in areas that have weather concerns, such as hurricanes.



Construction process for modular house

Modular components are typically constructed indoors on assembly lines. Modules' construction may take as little as ten days but more often one to three months. Completed modules are transported to the building site and assembled by a crane.[4] Placement of the modules may take from several hours to several days.



Manufacturing considerations

The entire process of modular construction places significance on the design stage. This is where practices such as Design for Manufacture and Assembly (DfMA) are used to ensure that assembly tolerances are controlled throughout manufacture and assembly on site. It is vital that there is enough allowance in the design to allow the assembly to take up any "slack" or misalignment of components. The use of advanced CAD systems, 3D printing and manufacturing control systems are important for modular construction to be successful.[5] This is quite unlike on-site construction where the tradesman can often make the part to suit any particular installation.



Advantages of modular house



Modular buildings are argued to have advantages over conventional buildings, for a variety of reasons.

Speed of construction/faster return on investment. Modular construction allows for the building and the site work to be completed simultaneously. According to some materials, this can reduce the overall completion schedule by as much as 50%.

Indoor construction. Assembly is independent of weather, which can increase work efficiency and avoids damaged building material.

Ability to service remote locations. Particularly in countries in which potential markets may be located far from industrial centers, such as Australia, there can be much higher costs to build a site-built house in a remote area or an area experiencing a construction boom such as mining towns.[citation needed]

Low waste. With the same plans being constantly built, the manufacturer has records of exactly what quantity of materials are needed for a given job. While waste from a site-built dwelling may typically fill several large dumpsters, construction of a modular dwelling generates much less waste.

Environmentally friendly construction process. Modular construction reduces waste and site disturbance compared to site-built structures.[citation needed]

Flexibility. One can continually add to a modular building, including creating high rises.[6]

Generally speaking, our Steel structure warehouse/workshop are categorized as below:


(1) Simple Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet
Door Simple steel rolling shutter (within 10m2)
Window Very few
Usage Warehouse, workshop
Standard and suitable market Africa, Middle-East, South America (no snow, wind load below 0.4kn/m2)




(2) Standard Steel Structure Workshop
Main structure Single span: L -shorter than 24m, H -lower than 8m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door(within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Snow loading below 0.5kn,wind loading below 0.5kn/m2





3) Coastal (high wind speed) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Coastal areas (snow loading below 0.7kn, wind load below 1.2kn/m2)





(4) Cold Region (heavy snow) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof EPS/rock wool/PU sandwich board
Wall EPS/rock wool/PU sandwich board
Door PU foamed rolling door
Window Alu. Alloy, Hollow glass
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Cold regions such as Norway, Russian, North Canada, Finland, Iceland, Greenland, Sweden, etc. (snow loads below 3kn, wind load below 1KN/M2)





(5) Steel Structure Workshop with Crane (5T, 10T, 20T)
Main structure Single span: L -shorter than 20m, H -lower than 10m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop
Standard and suitable market Snow 0.5kn, wind load below 0.5kn/m2




Name steel structure hangar
Standard GB
Main Material
Main frame Q 235 &Q345
Bracing Angel and round pipe
Purlin C or Z section steel
Connection Normal bolts and High strength bolt
Roof panel Corrugated steel sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Wall panel Corrugated steel sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Accessories Skylight belts, Ventilators, Down pipe, Out gutter
Windows Aluminum window/PVC sliding window
Doors Sliding door;Rolling up door;Folding tip-up door;PVC door
Surface Hot dip galvanize or Painted
Packing Main frame packed in 40FT container, maintenance packed in 40HQ container
Main market North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe


Specifications


Name

Steel Structural

Dimensions

Length

H beam:4000-15000mm

Thickness:

web plate:6-32mm

wing plate:6-40mm

Height

200-1200mm

Color

according to customers



Advantages

1. design according to customers' requirements

2. manufacture under complete quality control system---ISO9001

3. Fast construction and easy installation .

4. installation with instruction of experienced engineers

5. Hight quality and low-price .

6. Wide span , Flexible design , Long using life

7.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

Main components

Main frame

H beam

Purlin

C or Z section steel purlin

Brace

Anchor, ordinary, high strength bolt

Bolt

Sandwich panel or steel plate

Roof &wall

PVC or aluminum alloy door

Door

Sliding or rolling door

Insulation panel

EPS,XPS,Rock wool , PU sandwich

Material

Q235,Q345 China standard steel

Sheet

0.5mm or 0.6mm galvanized sheet


solution



Technical characteristics of containers type modules elements

(1)ISO standard dimensions of 20 feet STANDARD containers-optionally 10 up to 30 feet

(2)length=6.058 mm (optionally 3.048 - 9.100 mm)

width=2.438 mm (optionally 3.000 mm)

(3)exterior height=2.591 mm (optionally 2.791 mm or 3100 mm)

(4)inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)



container construction difference

ZINCED metal profyles 3 mm connected with scres



container painting

(1)option: on customer wish in RAL color

(2)option: painted on customer wish in RAL color



container floor opening for forklift

(1)without forklift pockets

(2)option: with forklift pockets for containers up to 7.335 mm

(3)holes distance 1.506mm



container roof construction



container exterior wall and side panels

(1)50 mm poliurethane panel, externally micro-corrugated RAL 9002

internally smooth RAL 9010 (white)

(2)option: 60 mm mineral wool, both side plastificated in RAL 9002

(3)option: 60 mm mineral wool, both side plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)

(4)option: 80 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(5)option: 100 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)

(6)option: 100 mm mineral wool, both side plasticated steel plate RAL 9010 (white)

(7)option: 120 mm mineral wool, both side plasticated steel plate RAL 9010 (white)



container exterior and inner walls

PVC with polyurethane filling 40 mm, clear opening 79/202 cm



container windows and doors

(1)option: windows without shutters

(2)option: windows with shutters



container isolation, coefficient of thermal resistance

floor - U = 0,37 W / m2k

roof - U = 0,39 W /m2k

wall panels - U = 0,41 W /m2k

windows - U = 2,40 W / m2k



Flat Pack Containerized Modular House Solution





Individual KXD container modules

They are assembled in KXD factory production from KXD manufactured elements. They come to the market as finished product as residential or office space equipped with or without equipment. Individual container modules are used as a single objects as bungalows, dormitories, offices, warehouses, shops, workshops and a built MODULE for the construction of various shapes and purposes.



dimensions and weights



container location preparation



container handling and lifting



option: Forklift for lifting containers up to 7.3 m in lenght if container has forklift holes



container electric installations



Illustration of singel module for multi-storey modular house



Insight into the modular house





Wide application for Containerized Modular House Solution:

Modular Houses may be used for long-term, temporary or permanent facilities, such as construction camps, schools and classrooms, civilian and military housing, and industrial facilities.[2] Modular buildings are used in remote and rural areas where conventional construction may not be reasonable or possible.Other uses have included churches, health care facilities, sales and retail offices, fast food restaurants and cruise ship construction. They can also be used in areas that have weather concerns, such as hurricanes.



Construction process for modular house

Modular components are typically constructed indoors on assembly lines. Modules' construction may take as little as ten days but more often one to three months. Completed modules are transported to the building site and assembled by a crane.[4] Placement of the modules may take from several hours to several days.



Manufacturing considerations

The entire process of modular construction places significance on the design stage. This is where practices such as Design for Manufacture and Assembly (DfMA) are used to ensure that assembly tolerances are controlled throughout manufacture and assembly on site. It is vital that there is enough allowance in the design to allow the assembly to take up any "slack" or misalignment of components. The use of advanced CAD systems, 3D printing and manufacturing control systems are important for modular construction to be successful.[5] This is quite unlike on-site construction where the tradesman can often make the part to suit any particular installation.



Advantages of modular house



Modular buildings are argued to have advantages over conventional buildings, for a variety of reasons.

Speed of construction/faster return on investment. Modular construction allows for the building and the site work to be completed simultaneously. According to some materials, this can reduce the overall completion schedule by as much as 50%.

Indoor construction. Assembly is independent of weather, which can increase work efficiency and avoids damaged building material.

Ability to service remote locations. Particularly in countries in which potential markets may be located far from industrial centers, such as Australia, there can be much higher costs to build a site-built house in a remote area or an area experiencing a construction boom such as mining towns.[citation needed]

Low waste. With the same plans being constantly built, the manufacturer has records of exactly what quantity of materials are needed for a given job. While waste from a site-built dwelling may typically fill several large dumpsters, construction of a modular dwelling generates much less waste.

Environmentally friendly construction process. Modular construction reduces waste and site disturbance compared to site-built structures.[citation needed]

Flexibility. One can continually add to a modular building, including creating high rises.[6]

Generally speaking, our Steel structure warehouse/workshop are categorized as below:


(1) Simple Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet
Door Simple steel rolling shutter (within 10m2)
Window Very few
Usage Warehouse, workshop
Standard and suitable market Africa, Middle-East, South America (no snow, wind load below 0.4kn/m2)




(2) Standard Steel Structure Workshop
Main structure Single span: L -shorter than 24m, H -lower than 8m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door(within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Snow loading below 0.5kn,wind loading below 0.5kn/m2





3) Coastal (high wind speed) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or 50mm EPS sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Coastal areas (snow loading below 0.7kn, wind load below 1.2kn/m2)





(4) Cold Region (heavy snow) Steel Structure Workshop
Main structure Single span: L -shorter than 18m, H -lower than 6m
Maintenance system Roof EPS/rock wool/PU sandwich board
Wall EPS/rock wool/PU sandwich board
Door PU foamed rolling door
Window Alu. Alloy, Hollow glass
Usage Warehouse, workshop, shopping mall, exhibition hall, super market
Standard and suitable market Cold regions such as Norway, Russian, North Canada, Finland, Iceland, Greenland, Sweden, etc. (snow loads below 3kn, wind load below 1KN/M2)





(5) Steel Structure Workshop with Crane (5T, 10T, 20T)
Main structure Single span: L -shorter than 20m, H -lower than 10m
Maintenance system Roof Colored steel sheet with 50mm glass wool insulation
Wall Colored steel sheet or sandwich board
Door Wind resistance rolling door (within 15m2)
Window Alu. Alloy (can use with skylight)
Usage Warehouse, workshop
Standard and suitable market Snow 0.5kn, wind load below 0.5kn/m2




Name steel structure hangar
Standard GB
Main Material
Main frame Q 235 &Q345
Bracing Angel and round pipe
Purlin C or Z section steel
Connection Normal bolts and High strength bolt
Roof panel Corrugated steel sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Wall panel Corrugated steel sheet or EPS, Glass wool, Rockwool, PU, etc sandwich panel
Accessories Skylight belts, Ventilators, Down pipe, Out gutter
Windows Aluminum window/PVC sliding window
Doors Sliding door;Rolling up door;Folding tip-up door;PVC door
Surface Hot dip galvanize or Painted
Packing Main frame packed in 40FT container, maintenance packed in 40HQ container
Main market North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe


Specifications


Name

Steel Structural

Dimensions

Length

H beam:4000-15000mm

Thickness:

web plate:6-32mm

wing plate:6-40mm

Height

200-1200mm

Color

according to customers



Advantages

1. design according to customers' requirements

2. manufacture under complete quality control system---ISO9001

3. Fast construction and easy installation .

4. installation with instruction of experienced engineers

5. Hight quality and low-price .

6. Wide span , Flexible design , Long using life

7.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

Main components

Main frame

H beam

Purlin

C or Z section steel purlin

Brace

Anchor, ordinary, high strength bolt

Bolt

Sandwich panel or steel plate

Roof &wall

PVC or aluminum alloy door

Door

Sliding or rolling door

Insulation panel

EPS,XPS,Rock wool , PU sandwich

Material

Q235,Q345 China standard steel

Sheet

0.5mm or 0.6mm galvanized sheet




Offer request
Type of sandwich panel
Dimension length thickness of core thickness of steel sheet



Construction Site
Contact Name
Company Name
Phone Number
Email
Additional info
Send us sketches, drawings or the project, if you have

Contact us if you need more details on Building. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Prefabricated Building、Insulated Prefabricated Building. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Steel Sandwich Panel

Email to this supplier
  • *Subject:
  • To:

  • *Messages:
    Your message must be between 20-8000 characters
